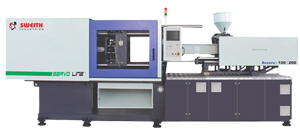

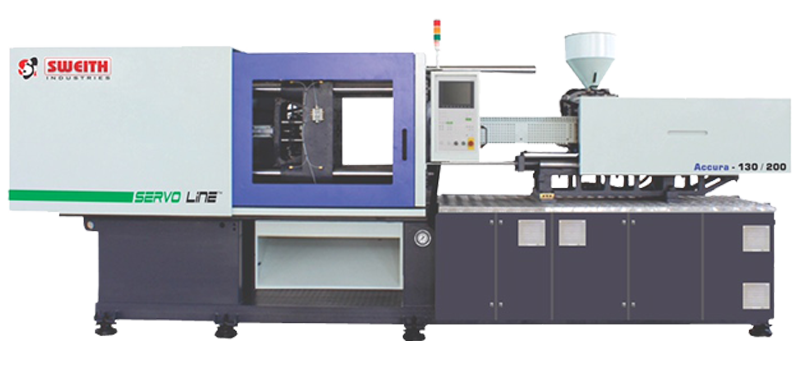

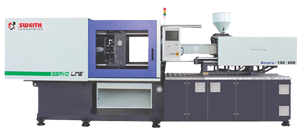

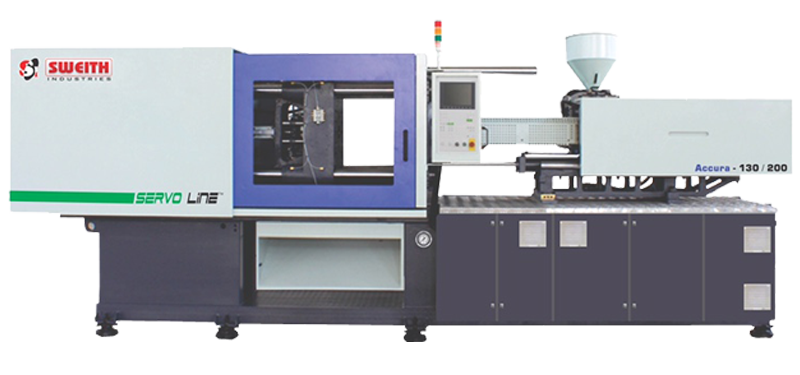

Plastic Injection Moulding Machine
Servo Line VDP
Accura-50Injection Unit Accura - 50 Screw diameter mm 28 Screw L/D ratio L/D 18 Shot size (Theoretical) cu.cm 68 Injection Weight (PS) gms 61 Injection Pressure Mpa 120 Screw Stroke mm 110 Screw Speed r/min 0-140 Clamping Unit Clamping tonnage Tonne 40 Toggle Stroke mm 220 Space between mm 275 x 275 Tie bars mm 275 x 275 Max. mould height mm 275 Min. mould height mm 110 Ejector Stroke mm 60 Ejector tonnage Tonne 20 Other Equipments Max. pump pressure Kg/cm2 175 Pump motor Power kw 5 Heater power kw 3 Machine Weight(Approximate) Tonne 1.9 Hopper capacity Ltrs 15 Oil tank capacity Ltrs 120 Machine Dimensions (L x W x H) m 3.6 x 1.1 x 1.5
Plastic Injection Moulding Machine
- Accura-70
Injection Unit Accura - 70 A B C Screw diameter mm 32 35 38 Screw L/D ratio L/D 21.3 19.5 18 Shot size (Theoretical) cu.cm 113 135 159 Shot size (Theoretical) cu.cm 113 135 159 Injection Weight (PS) gms 102 123 144 Injection Pressure Mpa 188 157 133 Screw Stroke Mpa 188 157 133 Screw Speed r/min 0-240 Clamping Unit Clamping tonnage Tonne 70 Toggle Stroke mm 300 Space between mm 315 x 315 Tie bars mm 315 x 315 Max. mould height mm 320 Min. mould height mm 120 Ejector Stroke mm 75 Ejector tonnage Tonne 27 Other Equipments Max. pump pressure Kg/cm2 175 Pump motor Power kw 7.5 Heater power kw 6.2 Machine Weight(Approximate) Tonne 2.9 Hopper capacity Ltrs 25 Oil tank capacity Ltrs 160 Machine Dimensions (L x W x H) m 3.7 x 1.1 x 1.65
Plastic Injection Moulding Machine
- Accura-100
Injection Unit Accura - 100 A B C Screw diameter mm 36 38 40 Screw L/D ratio L/D 21.3 19.5 18 Shot size (Theoretical) cu.cm 168 198 220 Injection Weight (PS) gms 162 181 200 Injection Pressure Mpa 207 186 168 Screw Stroke mm 175 Screw Speed r/min 0-225 Clamping Unit Clamping tonnage Tonne 100 Toggle Stroke mm 340 Space between mm 380 x 380 Tie bars mm 380 x 380 Max. mould height mm 400 Min. mould height mm 150 Ejector Stroke mm 100 Ejector tonnage Tonne 30 Other Equipments Max. pump pressure Kg/cm2 175 Pump motor Power kw 9.5 Heater power kw 6.2 Machine Weight(Approximate) Tonne 3.2 Hopper capacity Ltrs 25 Oil tank capacity Ltrs 210 Machine Dimensions (L x W x H) m 4 x 1.35 x 1.7
Plastic Injection Moulding Machine
- Accura-130
Injection Unit Accura - 130 A B C Screw diameter mm 36 42 45 Screw L/D ratio L/D 23.1 20.9 18.4 Shot size (Theoretical) cu.cm 168 220 310 Injection Weight (PS) gms 162 200 291 Injection Pressure Mpa 201 183 159 Screw Stroke mm 190 Screw Speed r/min 250 Clamping Unit Clamping tonnage Tonne 130 Toggle Stroke mm 400 Space between mm 430 x 430 Tie bars mm 430 x 430 Max. mould height mm 450 Min. mould height mm 180 Ejector Stroke mm 130 Ejector tonnage Tonne 48 Other Equipments Max. pump pressure Kg/cm2 175 Pump motor Power kw 13 Heater power kw 7.2 Machine Weight(Approximate) Tonne 3.8 Hopper capacity Ltrs 25 Oil tank capacity Ltrs 260 Machine Dimensions (L x W x H) m 4.8 x 1.33 x 1.9
Plastic Injection Moulding Machine
- Accura-170
Injection Unit Accura - 170 A B C Screw diameter mm 42 48 50 Screw L/D ratio L/D 22.5 20 18.8 Shot size (Theoretical) cu.cm 332.5 434 471 Injection Weight (PS) gms 303 395 429 Injection Pressure Mpa 225 172 158 Screw Stroke mm 235 Screw Speed r/min 0-190 Clamping Unit Clamping tonnage Tonne 170 Toggle Stroke mm 430 Space between mm 472 x 472 Tie bars mm 472 x 472 Max. mould height mm 480 Min. mould height mm 180 Ejector Stroke mm 120 Ejector tonnage Tonne 45 Other Equipments Max. pump pressure Kg/cm2 175 Pump motor Power kw 15 Heater power kw 7.5 Machine Weight(Approximate) Tonne 4.6 Hopper capacity Ltrs 25 Oil tank capacity Ltrs 280 Machine Dimensions (L x W x H) m 5.1 x 1.5 x 2
Plastic Injection Moulding Machine
- Accura-220
Injection Unit Accura - 220 A B C Screw diameter mm 48 52 55 Screw L/D ratio L/D 23.2 21 19.1 Shot size (Theoretical) cu.cm 480 563 630 Injection Weight (PS) gms 436 512 573 Injection Pressure Mpa 211 180 160 Screw Stroke mm 265 Screw Speed r/min 0-200 Clamping Unit Clamping tonnage Tonne 220 Toggle Stroke mm 490 Space between mm 532 x 532 Tie bars mm 532 x 532 Max. mould height mm 550 Min. mould height mm 200 Ejector Stroke mm 130 Ejector tonnage Tonne 70 Other Equipments Max. pump pressure Kg/cm2 175 Pump motor Power kw 17.5 Heater power kw 12.5 Machine Weight(Approximate) Tonne 6.9 Hopper capacity Ltrs 50 Oil tank capacity Ltrs 420 Machine Dimensions (L x W x H) m 5.6 x 1.6 x 2.2
Plastic Injection Moulding Machine
- Accura-270
Injection Unit Accura - 270 A B C Screw diameter mm 55 60 65 Screw L/D ratio L/D 21.8 20 18.4 Shot size (Theoretical) cu.cm 635 777.5 912.5 Injection Weight (PS) gms 594 707.5 830 Injection Pressure Mpa 216 182 155 Screw Stroke mm 275 Screw Speed r/min 0-190 Clamping Unit Clamping tonnage Tonne 270 Toggle Stroke mm 550 Space between mm 580 x 580 Tie bars mm 580 x 580 Max. mould height mm 600 Min. mould height mm 230 Ejector Stroke mm 145 Ejector tonnage Tonne 70 Other Equipments Max. pump pressure Kg/cm2 175 Pump motor Power kw 22 Heater power kw 14.9 Machine Weight(Approximate) Tonne 8.5 Hopper capacity Ltrs 50 Oil tank capacity Ltrs 560 Machine Dimensions (L x W x H) m 5.6 x 1.6 x 2.2
Plastic Injection Moulding Machine
- Accura-320
Injection Unit Accura - 320 A B C Screw diameter mm 60 65 70 Screw L/D ratio L/D 21.7 20 18.6 Shot size (Theoretical) cu.cm 990 1161 1347 Injection Weight (PS) gms 901 1057 1226 Injection Pressure Mpa 244 208 179 Screw Stroke mm 350 Screw Speed r/min 0-190 Clamping Unit Clamping tonnage Tonne 320 Toggle Stroke mm 670 Space between mm 660 x 660 Tie bars mm 660 x 660 Max. mould height mm 700 Min. mould height mm 240 Ejector Stroke mm 160 Ejector tonnage Tonne 120 Other Equipments Max. pump pressure Kg/cm2 175 Pump motor Power kw 30 Heater power kw 18.5 Machine Weight(Approximate) Tonne 12 Hopper capacity Ltrs 50 Oil tank capacity Ltrs 630 Machine Dimensions (L x W x H) m 6.8 x 1.9 x 2.3
Plastic Injection Moulding Machine
- Accura-400
Injection Unit Accura - 400 A B C D Screw diameter mm 65 70 75 80 Screw L/D ratio L/D 23.7 22 20.5 19.3 Shot Volume (Theoretical) cm 1220 1428 1639 1819 Injection Weight (PS) gms 1050 1258 1539 1665 Injectio Rate g/s 315 357 406 440 Injection Pressure Mpa 208 180 156 138 Screw Speed rpm 150 Clamping Unit Clamping Force Kn 4000 Open Stroke mm 700 Space between Tie-Bars mm 730 x 730 Max Mould Height mm 780 Min Mould Height mm 280 Ejector Stroke mm 180 Ejector Force Kn 126 Other Equipments Max. pump pressure Mpa 16 Pump motor Power kw 37 Heater power kw 23.5 Machine Weight(Approximate) Tonne 15 Oil tank capacity Ltrs 750 Machine Dimensions (L x W x H) m 7.3 x 2.1 x 2.9
Plastic Injection Moulding Machine
- Accura-500
Injection Unit Accura - 500 A B C D Screw diameter mm 75 80 85 90 Screw L/D ratio L/D 23.7 22 20.7 19.5 Shot Volume (Theoretical) cm 1727 1965 2018 2487 Injection Weight (PS) gms 1560 1788 2018 2266 Injectio Rate g/s 386 442 499 560 Injection Pressure Mpa 191 168 148 132 Screw Speed rpm 175 Clamping Unit Clamping Force Kn 5000 Open Stroke mm 770 Space between Tie-Bars mm 820 x 800 Max Mould Height mm 810 Min Mould Height mm 330 Ejector Stroke mm 240 Ejector Force Kn 150 Other Equipments Max. pump pressure Mpa 16 Pump motor Power kw 55 Heater power kw 33 Machine Weight(Approximate) Tonne 21 Oil tank capacity Ltrs 880 Machine Dimensions (L x W x H) m 7.74 x 1.89 x 2.69
Plastic Injection Moulding Machine
- Accura-600
Injection Unit Accura - 600 A B C D Screw diameter mm 90 95 100 105 Screw L/D ratio L/D 20 19 18 17.1 Shot Volume (Theoretical) cm 2554 2835 3140 3461 Injection Weight (PS) gms 2315 2580 2850 3149 Injectio Rate g/s 552 612 679 748 Injection Pressure Mpa 184 165 149 135 Screw Speed rpm 150 Clamping Unit Clamping Force Kn 6000 Open Stroke mm 850 Space between Tie-Bars mm 850 x 850 Max Mould Height mm 900 Min Mould Height mm 350 Ejector Stroke mm 230 Ejector Force Kn 150 Other Equipments Max. pump pressure Mpa 16 Pump motor Power kw 30 + 37 Heater power kw 42.95 Machine Weight(Approximate) Tonne 28 Oil tank capacity Ltrs 1100 Machine Dimensions (L x W x H) m 10.2 x 2.24 x 2.71
