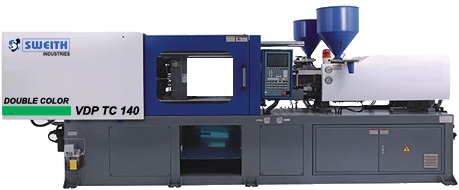

Double Color Injection Moulding Machine


Servo Line   VDP

  • Double Color Injection Moulding Machine


    Contact Us


    »Using parallel structure material tube injection group, the main radiation can work alone, can also work at the same time, for more mold production.

    »Shaft type two-color machine used the mold core shaft drive the mold to make 180 ° rotation, to produce double color and clear product.

    »Machine action can in accordance with the demand for products at the same time, make mould and rotational mould mould core, or rotational mould first mold core complex process operation requirements, such as supporting mold again. Shaft type two-color machine is suitable for production of keys, dial wheel handle, handle, auto air conditioning, Yan Cone and Proforeted etc.

    General Applications

    • PET Preforms

Double Color Injection Moulding Machine


Description Unit TC140 TC170 TC270
Injection Unit
A B A B A B A B A B
Screw diameter mm 28 30 32 34 30 35 32 38 45 36
Theoretical Shot Volume cm3 86 98 112 127 113 154 128 181 346 221
Shot Weight(PS) g 77 88 100 114 100 138 115 162 312 200
Injection rate g/s 48 55 88 101 89 121 86 112 110 68
Injection Pressure Mpa 232 202 178 157 230 170 203 145 170 266
g/s 6.8 8.3 9.6 13.4 8.3 11.58 9.6 13.4 8.3 9.6
Max.Screw Speed rpm 210 300 300 250 200 180
Clamping Unit
Clamping Force kn 1400 1700 2700
Opening Stroke mm 380 420 550
Distance between tip-bars mm 455 x 405 700 x 440 945 x 575
Mold height mm 150 - 450 120 - 500 200 - 580
Ejector Stroke mm 100 130 145
Ejector force kn 246 246 326
Ejector No 1 x 2
Mole Plate dimensions mm 648 x 600 926 x 666 1220 x 850
Rotary table dimensions mm 560 800 1080
Distance between ejector mm 200 420 520
Mould min.spacing mm 70 70 70
Others
Max.pump pressure Mpa 14 14 14
Pump motor power kw 18.5 22 30
Heating power kw 6 x 2 6 x 2 7.5 x 2
Machine dimensions m 4.5 x 1.1 x 1.7 5.2 x 1.35 x 1.9 5.8 x 1.58 x 2.2
Machine Weight t 8
